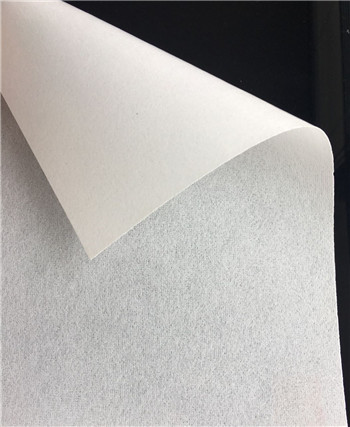

PVC coated fiberglass mat is using to produce PVC sports floor. This product use Fiberglass mat as the base material, one side of the fiberglass be evenly coated with melted PVC, then going through the curing process. During the producing of the PVC floor, the manufacturer can use the PVC coated fiberglass mat to produce the floor, the PVC side of this product can be printed with different design then be laminated with wearing layer, and fiberglass side of this product can be laminated with PVC foaming layer. Since the PVC coated fiberglass mat is have been coated with PVC on one side, the fiberglass side of the material can be laminated with the PVC foaming layer very well.
The PVC coated fiberglass mat can also be used as waterproofing material, the fiberglass side of this product can apply to the bitumen and cement very well.
The fiberglass mat can be 30g/m2, 40g/m2 and 50g/m2 or according to the customer’s demand. And the final weight of the PVC coated fiberglass mat can be done according to the customer’s requirement.
|
Product name |
PVC Coated fiberglass mat |
|
Code |
PC-300 |
|
Item |
Unit |
Specification |
Test result |
Test Standard |
|
fiberglass floor mat weight |
G/M2 |
40 |
40 |
GB/T 24218.1-2009 |
|
Total unit weight |
G/M2 |
300(±20) |
310 |
GB/T 24218.1-2009 |
|
Thickness |
MM |
0.4(±0.03) |
0.42 |
GB3820-1997 |
|
Paper core diameter |
MM |
76 |
76 |
/ |
|
Moisture |
% |
≤1 |
0.07 |
GB/T11966-1989 |
|
Tensile strength MD |
N/5CM |
≥200 |
230 |
GB/T 24218.3-2009 |
|
Tensile strength CD |
N/5CM |
≥150 |
162 |
|
Quantity |
|
roll |
|
|
|
Test date |
|
|
April 10, 2018 |
| |
