Home > Products

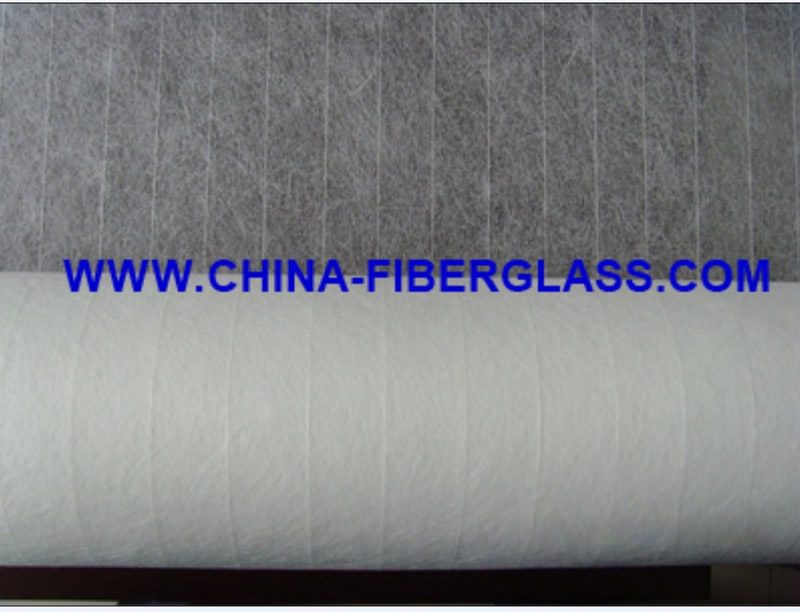

Fiberglass Roofing Tissue





Fiberglass Roofing Tissue is produced from fiberglass chopped strands by wet lay-out process. This material is characterized as high tensile strength, corrosion resistance, easy soakage by bitumen, and so on. The longitudinal strength and tear resistance can be further improved by incorporating reinforcements into the tissue across its whole width. The substrate, made of fiberglass roofing tissue, is not easy to crack, ageing and rot. mainly used as excellent substrate material for APP or SBS modified bitumen membrane.

Technical data

Items

Unit

fiberglass roofing tissue





   F-WM-50

 F-WM-60

F-WM-90

F-WM-45/T

F-WM-50/T

F-WM-60/T

F-WM-90/T

Linear density of reinforcement yarn

Tex







32/68

Yarn space

mm







15/30

Area weight

g/m 2

50

60

90

45

50

60

90

Binder Content

%

<25

Tensile Strength MD

N/5cm

160

160

300

170

190

230

330

Tensile Strength CD

N/5cm

80

110

200

70

80

100

200

Roll Width

mm

1000

Roll Length

m

  1500/3000

2400

1500

1600/3400

1500/3100

2400

1500

Roll Diameter

mm

<1170

Paper Core Internal Dia

mm

76/152



F-WM-45/T

    Roll length:3400 or 1600m

 Roll width:1000mm

 Yarn space:15 mm

 Packing:palstic film

 Loading capacity for 40'container:44rolls (149600SQM)or 115rolls(1840000SQM)

F-WM-50/T

 Roll length:3100 or 1500m

 Roll width:1000mm

 Yarn space:15 mm

 Packing:palstic film

 Loading capacity for 40'container:44rolls (136400SQM)or 115rolls(172500SQM)

F-WM-60/T

 Roll length:2400m

 Roll width:1000mm

 Yarn space:15 mm

 Packing:palstic film

 Loading capacity for 40'container:44rolls (105600SQM)

F-WM-50

   Roll length:3000 or 1500m

   Roll width:1000mm

   Packing:palstic film

   Loading capacity for 40'container:44rolls (132000SQM)or 115rolls(172500SQM)
